B20B
PN16 Size ½” to 1”

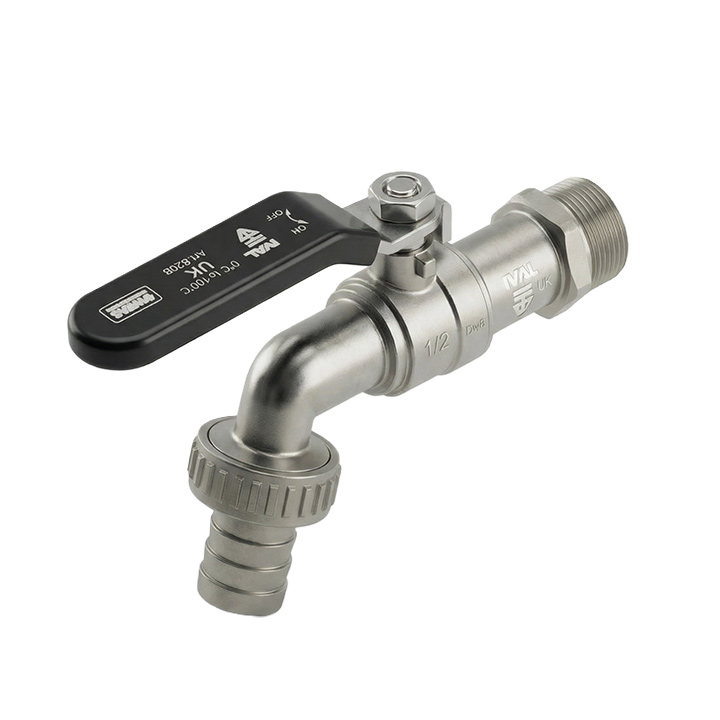

DZR Brass Ball Bib Cock Valve
Specifications:
IVAL® DZR Brass Ball Bib Cock Valve with EN12165 CW602N
Body, two-piece construction, PN16 rating.
Anti-blow out stem, adjustable packing.
Full Bore Chrome Plated Brass (CW617N) Ball. PTFE seat and
stem seal.
Operator: Lever, Quarter turn.
UK END CONNECTION: BSPP Taper Thread, compatible with
ISO 228.
WRAS approved.
Features:
• Ball Valves are light, compact units which are easy to
install and operate, yet their robust construction ensures
long, trouble-free service life.
• PN16 Pressure rating to suit demanding system pressures.
• 90° handle operation for simple use
• Full bore design to facilitate optimal flow rates with
minimum turbulence
• Integrated Hose Union Outlet.
